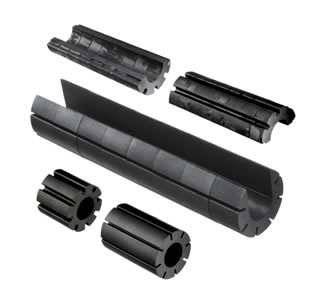

USM stock a wide range of Fluted Hollow Ferrite (FHF) of TDK and KASCHKE brand in various dimensions. For product description and dimensions download the pdf sheet.
USM stock a wide range of Fluted Ferrite (FF) cores of TDK (ZRS type) and KASCHKE brand in various dimensions. For product description and dimensions download the pdf sheet
USM stock a wide range of FSF FLAT SIDE FERRITE cores of TDK (ZR Type) and KASCHKE brand in various dimensions. For product description and dimensions download the pdf sheet.
USM stock a wide range of KASCHKE Ferrite cores Fluted Ferrite (FF) - Fluted Hollow Ferrite (FHF) - Hollow Ferrite (HF) - Flat Sided Ferrite (FSF) Material grade K 2006 Type: S 5/200B; S 6/200B; S 7/200B; S 8/200B; S 9/200B; S 10/200B;S 11/200B; S 12/200B; S 13/200B; S 14/200B; S 15/200B; S 16/200B; S 17/200B; S 18/200B; S 19/200B; S 20/200B; S 21/200B; S 22/200B; S 23/200B; S 24/200B; S 25/200B; S 27/200B; S 30/200B; S 3/200C; S 4/200C; S 5/200C; S 6/200C; S 7/200C; S 8/200C; S 9/200C; S 10/200C; S 11/200C; S 12/200C; S 13/200C; S 14/200C; S 15/200C; S 16/200C; S 18/200C; S 19/200C; S 20/200C; S 22/200C; HZ 5/2/200g; HZ 6/3/200g; HZ 7/3/200g; HZ 8/4/200g; HZ 9/4/200g; HZ 10/5/200g; HZ 11/5/200g; HZ 12/6/200g; HZ 13/6/200g; HZ 14/7/200g; HZ 15/7/200g; HZ 16/8/200g;HZ 17/8/200g;HZ 18/9/200g;HZ 19/9/200g;HZ 20/10/200g;HZ 21/10/200g; HZ 22/11/200g; HZ 25/12/200g; HZ 26/23/200g; HZ 28/14/200g; HZ 30/15/200g ;HZ 6/3/200GF; HZ 8/3/200GF; HZ 10/3/200GF; HZ 11/3/200GF; HZ 12/4/200GF; HZ 13/5/200GF; HZ 14/4/200GF; HZ 15/5/200GF; HZ 16/5/200GF; HZ 17/5/200GF; HZ 18/6/200GF; HZ 19/6/200GF; HZ 20/6/200GF; HZ 21/6/200GF; HZ 22/6/200GF; HZ 23/6/200GF; HZ 25/10/200GF; HZ 26/10/200GF; HZ 28/13/200GF; HZ 29/10/200GF; HZ 32/13/200GF; HZ 33/10/200GF; HZ 40/20/200GF; HZ 44/20/200GF; HZ 48/20/200GF; HZ 54/20/200GF; HZ 60/30/200GF; HZ 73/36/200GF; HZ 80/40/200GF; HZ 95/48/200GF

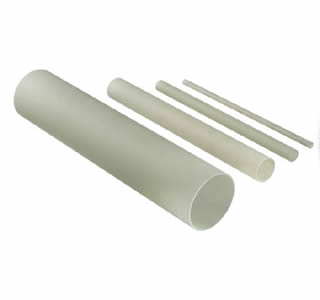

WT 912 Impeder Casings in fiberglass epoxy of various diameters and thickness. Fiberglass tubes made of fiberglass based on epoxy and silicone resin or quartz glass for the manufacture of shells of impedators for high-frequency welding of steel pipes. Operating temperature up to 180 °C. Available in round, rectangular and square sections in standard length or cut to length.

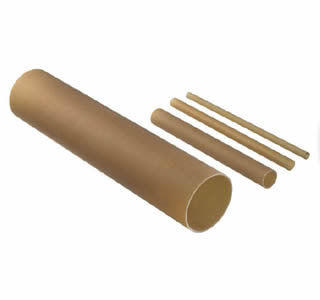

WT 2000 Impeder Casings in fiberglass epoxy of various diameters and thickness. Fiberglass tubes made of fiberglass based on epoxy and silicone resin or quartz glass for the manufacture of shells of impedators for high-frequency welding of steel pipes. Operating temperature up to 220 °C. Available in round, rectangular and square sections in standard length or cut to length.

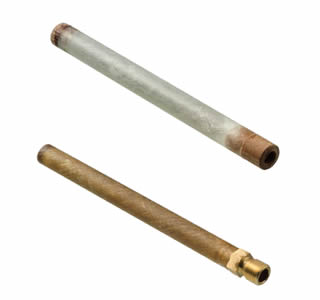

WATER THROUGH FLOW are the most common type of impeders and the least expensive. USM standard WATER THROUGH FLOW impeders are designed to insure the maximum cooling efficiency and use high-performance ferrite of brand TDK and KASCHKE only. Multiple ferrite crown solution USM can suggest most suitable impeder size and length.

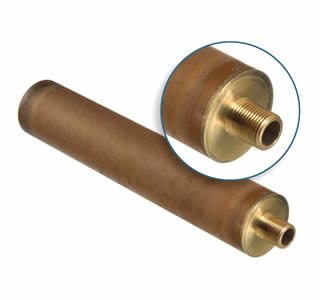

WATER RETURN FLOW Impeders are used when it is required a dry internal tube surface. USM standard WATER RETURN FLOW TYPE use high performance ferrite of brand TDK and KASCHKE only. USM can suggest most suitable impeder size and length Multiple ferrite crown solution. Tow bar stainless non magnetic as for customer’s drawing. Product Notes: Square and rectangular impeders available as per customer’s drawing.
USM CARTRIDGE IMPEDERS - WASTE WATER AND RETURN FLOW TYPE Product Notes: Available as for customer’s drawing - Length to be discussed time to time. Product Family: CARTRIDGE IMPEDERS
